1. Introduction & Overview

What is DevSecOps?

DevSecOps stands for Development, Security, and Operations. It integrates security practices within the DevOps process, ensuring that security is a shared responsibility across the entire software development lifecycle (SDLC).

Traditional SDLCs added security late in the process
DevSecOps introduces security as code, embedding security at every stage of CI/CD
The goal: build secure software faster and more efficiently

Background

DevOps Evolution: Shift from siloed development/operations to integrated teams
Security Challenges: As deployments became faster, security lagged behind
Birth of DevSecOps: Coined around 2012, emphasizing “shift-left” security practices

Why It’s Relevant in DevOps

Increases product resilience and compliance
Reduces risk exposure by catching vulnerabilities earlier
Facilitates automated security checks in pipelines

2. Core Concepts & Terminology

Key Terms

Term	Definition
Shift Left	Moving testing and security earlier in the development process
SAST	Static Application Security Testing – scans source code for vulnerabilities
DAST	Dynamic Application Security Testing – tests running applications
SBOM	Software Bill of Materials – list of all components in a software package
Secrets Scanning	Detecting hardcoded credentials, API keys, or tokens

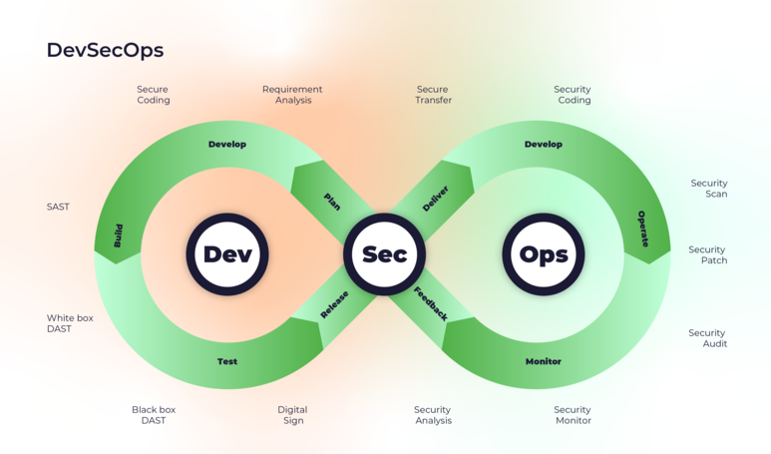

DevSecOps in the Lifecycle

DevSecOps spans across all DevOps stages:

Plan – Define secure architectures
Develop – Secure code, use SAST/secret scanners
Build – Check dependencies and enforce policies
Test – Automated security & compliance testing
Release – Container image scanning, secure packaging
Deploy – Infrastructure as Code (IaC) scanning, policy as code
Operate – Monitoring, logging, incident response
Monitor – Runtime protection and anomaly detection

3. Architecture & How It Works

Components

Security Scanners: SAST, DAST, dependency scanners (e.g., SonarQube, OWASP ZAP)
Policy Engines: Enforce compliance rules (e.g., OPA/Gatekeeper)
Container Scanning Tools: e.g., Trivy, Clair
Secrets Managers: e.g., HashiCorp Vault, AWS Secrets Manager
CI/CD Tools: Jenkins, GitLab CI/CD, GitHub Actions
Infrastructure-as-Code Scanners: Check Terraform, CloudFormation templates

Workflow Diagram (Descriptive)

          ┌──────────────┐
          │  Developer   │
          └──────┬───────┘
                 ▼
        ┌────────────────────┐
        │ Source Control (SCM)│
        └──────┬─────────────┘
               ▼
         ┌──────────────┐
         │ CI Pipeline  │
         ├──────────────┤
         │ - Lint Code   │
         │ - Run SAST    │
         │ - Secret Scan │
         └──────┬───────┘
                ▼
        ┌───────────────────┐
        │ Build + Package   │
        │ - SBOM generation │
        │ - Dependency Scan │
        └──────┬────────────┘
               ▼
          ┌──────────────┐
          │ CD Pipeline  │
          ├──────────────┤
          │ - IaC Scans   │
          │ - Policy Check│
          └──────┬───────┘
                 ▼
          ┌──────────────┐
          │ Deploy       │
          └──────┬───────┘
                 ▼
       ┌──────────────────┐
       │ Monitor & Alert  │
       └──────────────────┘

Integration with CI/CD & Cloud

Jenkins/GitLab: Integrate scanners (e.g., SonarQube, Checkov) as pipeline stages
Kubernetes: Use admission controllers, runtime scanners (e.g., Falco)
Cloud Providers: Use native tools (e.g., AWS Inspector, Azure Defender)

4. Installation & Getting Started

Prerequisites

GitHub or GitLab repo
Docker & Docker Compose
CI/CD system (e.g., GitHub Actions, Jenkins)
Basic knowledge of YAML, CI/CD pipelines, and CLI

Example: GitHub Actions + Trivy + Checkov

Step 1: Add Trivy and Checkov Workflow

Create a file .github/workflows/devsecops.yml

name: DevSecOps Scan

on: [push, pull_request]

jobs:
  security:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Code
        uses: actions/checkout@v2

      - name: Scan Dependencies with Trivy
        uses: aquasecurity/trivy-action@master
        with:
          scan-type: fs
          scan-ref: .

      - name: Check Infrastructure as Code
        uses: bridgecrewio/checkov-action@master

Step 2: Secrets Scanning (Optional)

Use GitHub’s built-in secret scanning or gitleaks.

# Install gitleaks
brew install gitleaks

# Run scan
gitleaks detect --source . --report-path=gitleaks-report.json

5. Real-World Use Cases

1. Financial Sector

Banks use DevSecOps to maintain compliance (PCI DSS) and detect threats early
Example tools: Vault for secrets, SonarQube for code analysis

2. Healthcare Apps

Protecting PHI (Personal Health Information)
Use IaC scanning to validate infrastructure compliance with HIPAA

3. E-commerce Platforms

CI pipelines include container scans and SAST tools before deploying payment gateways

4. Startups Using Kubernetes

Automatically block unscanned images from being deployed
Falco monitors runtime anomalies in clusters

6. Benefits & Limitations

Benefits

Faster vulnerability detection
Automated compliance checks
Improved developer awareness
Cost savings by reducing post-release issues

Limitations

Tooling overhead and complexity
False positives in automated scans
Cultural shift required within teams
May impact pipeline performance

7. Best Practices & Recommendations

Security Tips

Use signed commits and artifacts
Rotate secrets and monitor for hardcoded keys
Enable multi-factor authentication for tools

Performance & Maintenance

Run incremental scans to speed up builds
Archive reports and logs for compliance audits

Compliance & Automation

Use tools like OPA, Rego, and Conftest to codify policies
Automate license compliance checks in CI pipelines

8. Comparison with Alternatives

Approach	DevSecOps	Traditional DevOps	Security as a Service
Security	Integrated throughout	End-stage integration	Outsourced
Speed	Fast, with automation	Slower due to late security	Depends on provider
Control	High developer ownership	Lower developer involvement	Vendor managed
Best for	Agile teams, CI/CD	Legacy systems	Startups, MVPs

When to Choose DevSecOps:

You need fast, frequent deployments
You’re building cloud-native or containerized apps
You must comply with strict regulatory frameworks

9. Conclusion

DevSecOps is essential for modern software development. It ensures security is no longer a bottleneck but a seamless part of the delivery pipeline. The cultural, technical, and organizational benefits are significant—but only when implemented with care and alignment.

Future Trends

AI-assisted vulnerability detection
Zero-trust architectures
SBOM standardization and regulation
